Sanitation Units
From shower-equipped sanitation containers to full WC container groups – our environmentally friendly sanitation solutions operate with mains water.
They are modularly expandable, structurally robust, and easy to clean.
Our selection includes the following sanitation and WC units:

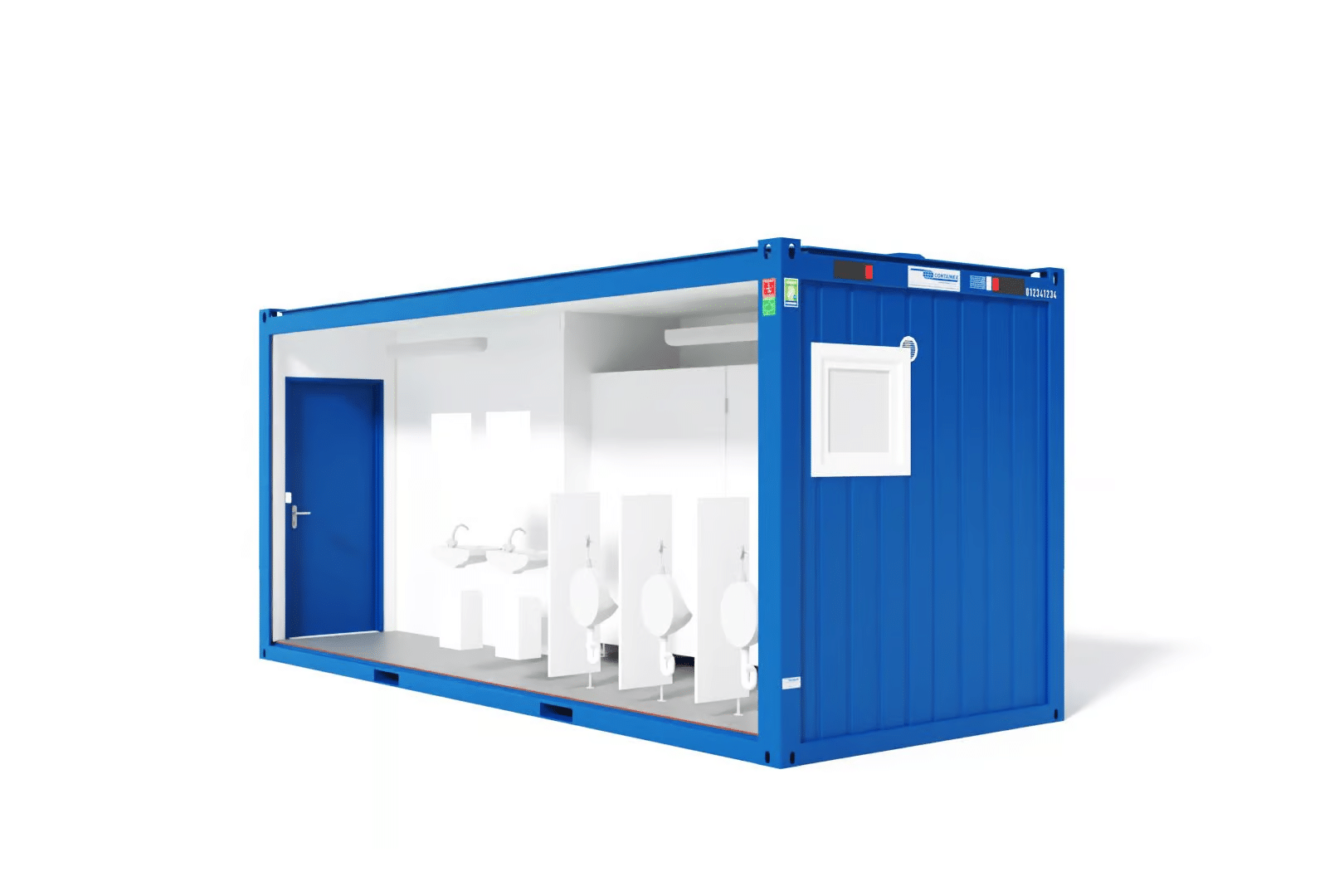

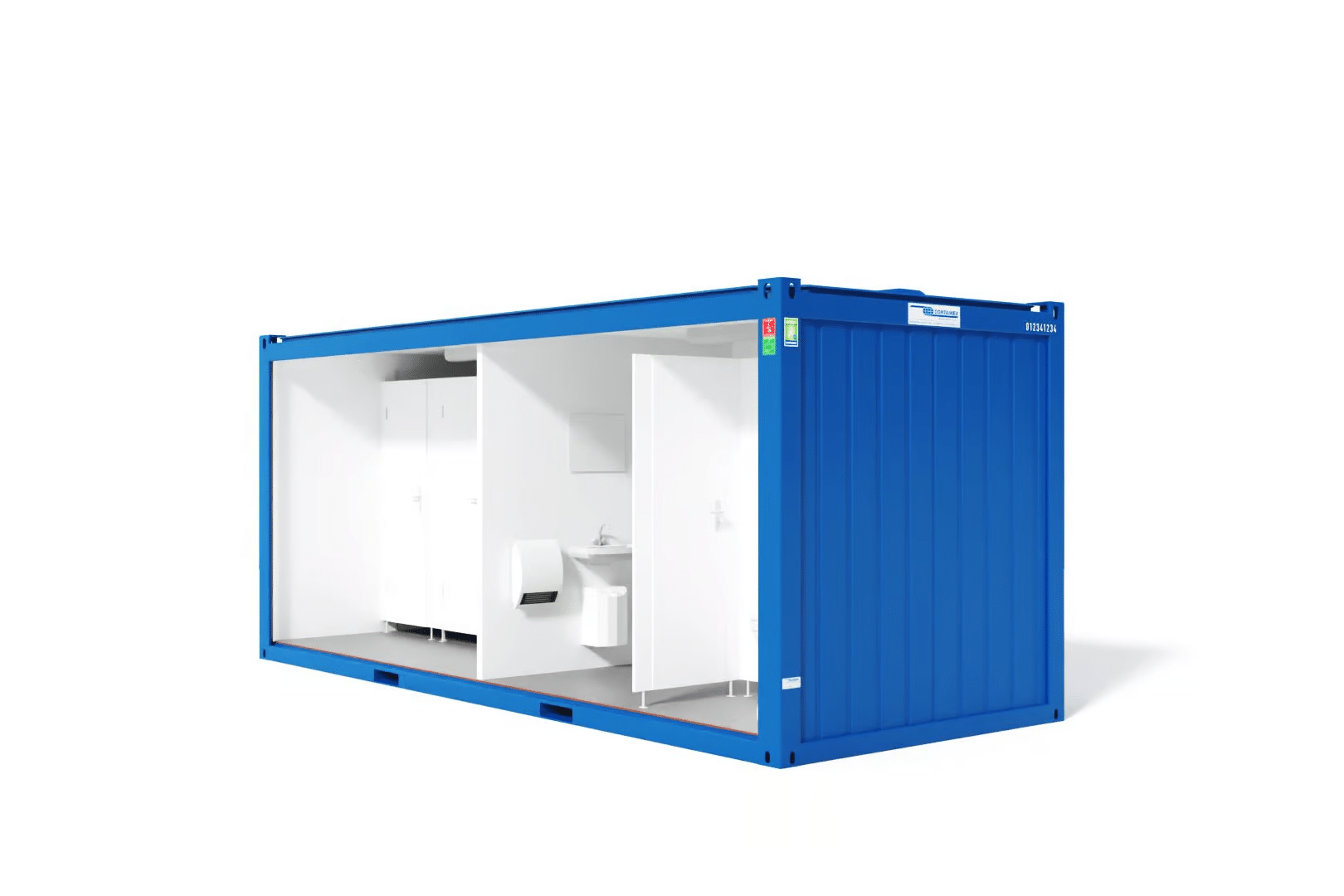

Sanitation Unit
ClassicLine
A space solution that can be fully customized to meet the client’s needs.
Multiple layout options available.
- Sanitation and WC containers can be painted in your preferred RAL color or finished with custom surface materials.
- Save both the environment and operational costs with durable equipment options such as touchless faucets and water-saving flush systems.
- Specify your preferred interior equipment – you can choose sink sizes, flooring materials, and much more.
- Select the most suitable water heating method (instant water heater or storage water heater, available in various sizes).
- Accessible sanitation and WC units certified according to DIN 18040-1 (registration number P1B064) are available for barrier-free access.
Available Types and Sizes

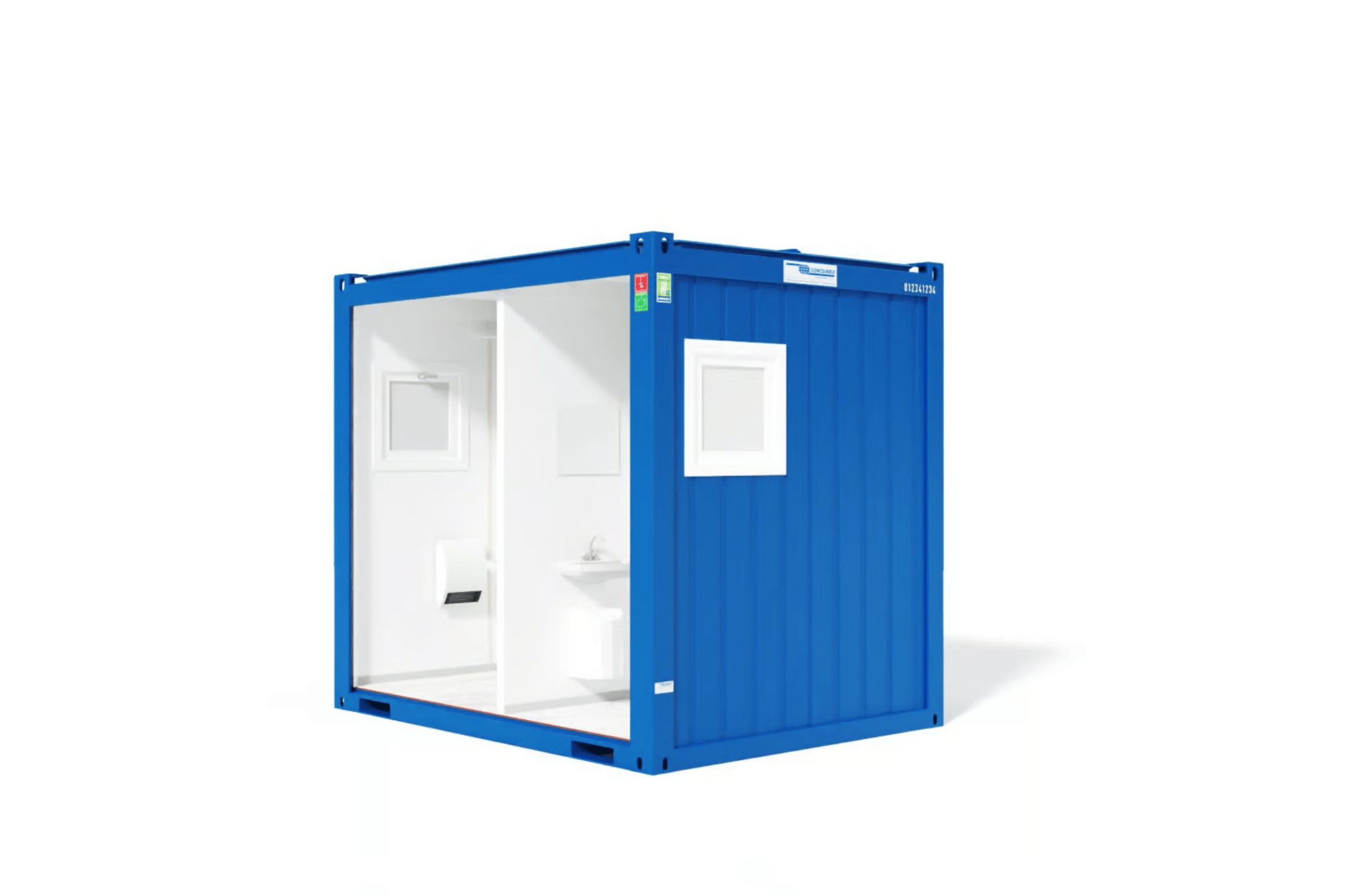

10′ Sanitation and WC Units
2 989 x 2 4
16′ Sanitation and WC Units
4 885 x 2 435 x 2 591 mm
20′ Sanitation and WC Units
6 055 x 2 435 x 2 591 mm
24′ Sanitation and WC Units
7 335 x 2 435 x 2 591 mm
30′ Sanitation and WC Units
9 120 x 2 435 x 2 591 mm
Interior Images
3D-Images
WC-box
The sanitation box is a clean and practical solution that uses mains water instead of chemicals. Thanks to a wide range of equipment options, the box can be fully customized to your specific needs.
- Hand wash basin
- Standard toilet or urinal
- Shower cabin with curtain
Flooring options: slip-resistant coating or durable aluminum tread plate.
The sanitation box can also be painted in your preferred color to blend perfectly with its surroundings.
Available Types and Sizes
5’ Sanitation box
1 200 x 1 400 x 2 540 mm
8’ Sanitation box
2 400 x 1 400 x 2 540 mm
Septic Tank
- The septic tank is compatible with 8′, 10′, and 20′ sanitation units.
- It is available in any RAL color, allowing seamless integration with the unit’s exterior design.
- Optional galvanized four-step stairs with handrails on both sides are the perfect accessory.
- Capacity up to 7 m³
- Durable internal coating (bitumen paint, thickness 200 μm)
8’ Septic Tank
Dimensions 1.395 x 2.435 x 690 mm
Weight 410 kg
Capacity 1,5 m3
Forklift Pocket Spacing 950 mm
Forklift Pocket Inner Dimensions 290 mm x 90 mm
Inlet Opening Inner Diameter 950 mm
10’ Septic Tank
Dimensions 2989 x 2.435 x 690 mm
Weight: 710 kg
Capacity 3,5 m3
Forklift Pocket Spacing 950 mm
Forklift Pocket Inner Dimensions 290 mm x 90 mm
Inlet Opening Inner Diameter 950 mm
20´ Septic Tank
Dimensions 6055 x 2.435 x 690 mm
Weight: 1 100kg
Capacity 7 m3
Forklift Pocket Spacing 950 mm
Forklift Pocket Inner Dimensions 290 mm x 90 mm
Inlet Opening Inner Diameter 950 mm
- Inspection hatch
- Forklift pocket
- Inlet opening with chain-secured plastic cover
- Vent pipe
- Flanged 2-way valve with 4″ brass ball valve, 1 pc (can be omitted upon request)
- Fill level indicator with replaceable inspection tube
